Short Description:

SHANVIM crusher jaws give you:
Machined surfaces for a consistent fit with less hassle and downtime.
Large selection of tooth and curve configurations for optimum performance in any application
Unsurpassed alloys for extended wear life and lower cost per ton.
As per the feedback from customers, the good performance of Jaw crusher spare parts in different working condition greatly decreased the time of examination & repair and the use-cost.

Product Detail

Product Tags


Jaw Plates or Jaw Dies are the most frequently replaced wear parts of the jaw crusher, so the quality of the jaw die is one of the most important factors that determine the crushing efficiency and operating time.

A set of jaw plates are composed of the movable (swing jaw) and fixed jaw plate (stationary jaw). Compression of material undergoing crushing in a jaw crusher is achieved when the movable jaw die presses the feed against the fixed jaw die. The rock remains in the jaw of the crushing machine until it is small enough to pass through the gap towards the bottom of the jaws.

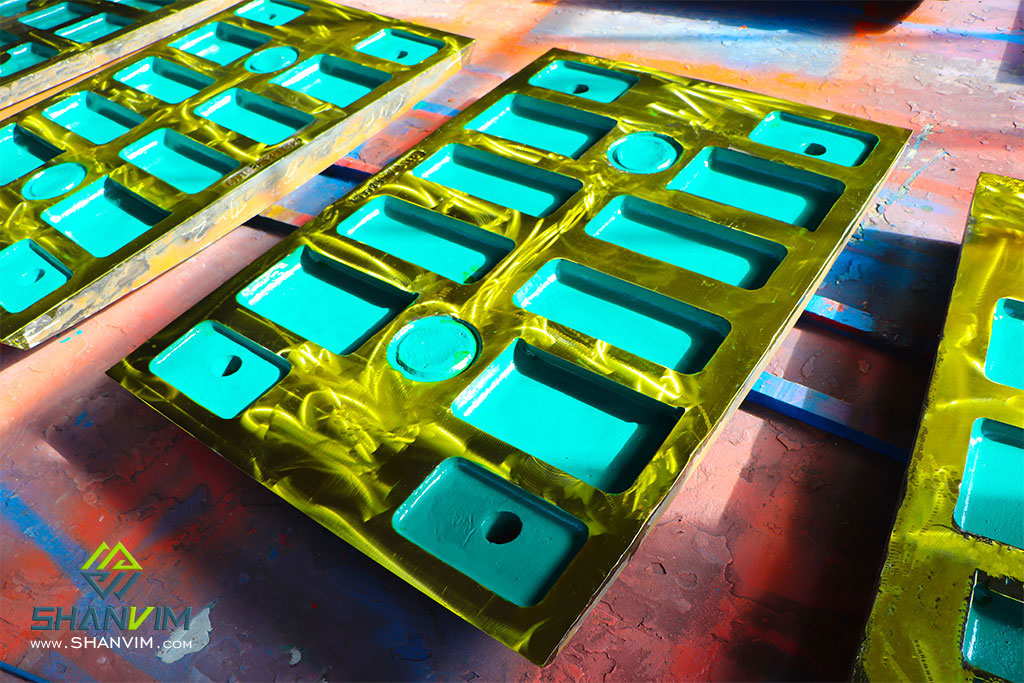

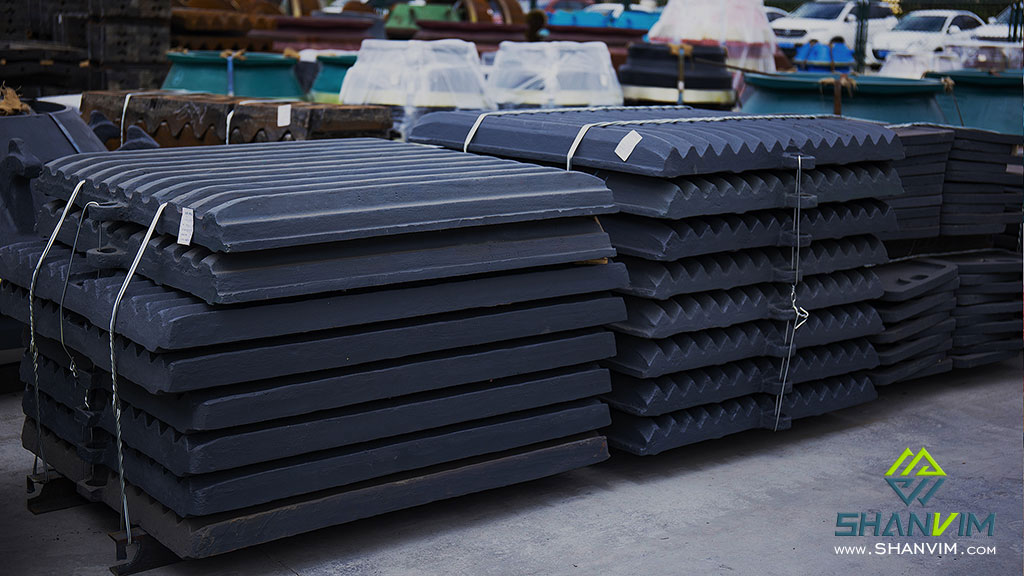

Genuine Alternative Spare Parts - Jaw Plates Made by SHANVIM®

SHANVIM® manufactures, stocks and supplies "Genuine Alternative" jaw plates of a fully extensive range of OEM jaw crushers including but not limited to: Metso®, Sandvik®, Extec®, Telsmith®, Terex®, Powerscreen®, Kleemann®, Komatso®, Kemco®, Finlay® and Fintec®.

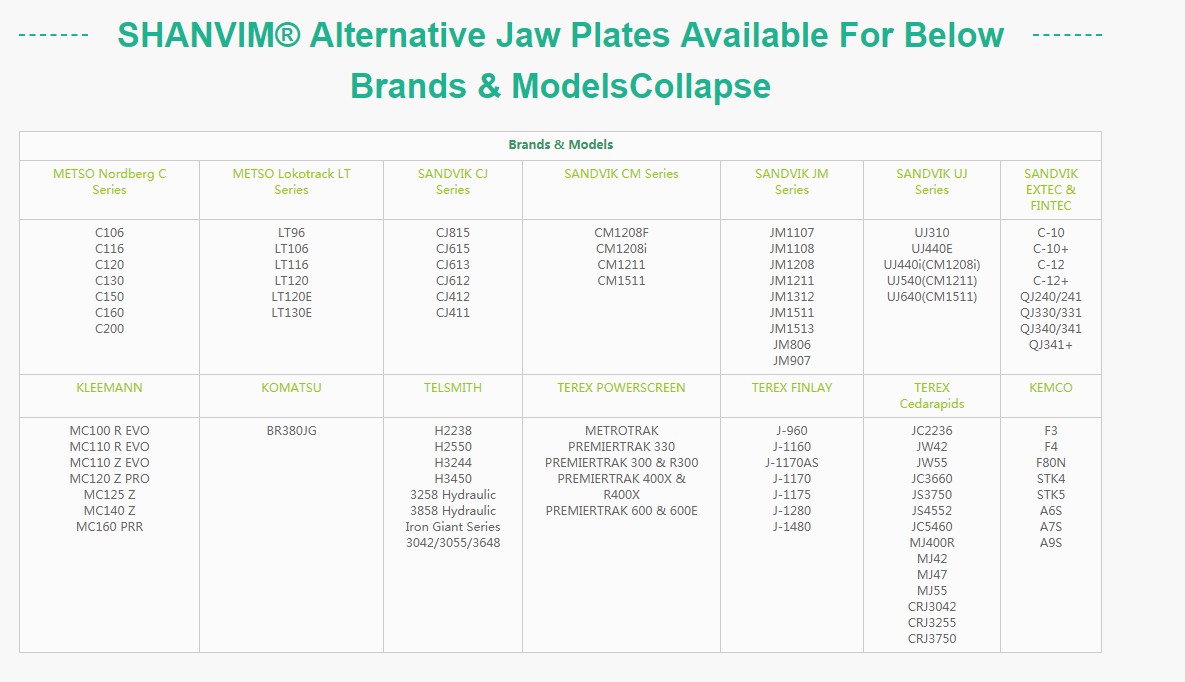

Notice: The following table does not include all the OEM interchangeable jaw plates that we can produce. If you need accessories from other brands, or know the OEM serial number of the jaw plate that you are looking to replace, or can provide the drawing of the jaw plates that you need to customize, please feel free to contact us by email or call.



Both stationary and movable jaw die could be flat surfaced or corrugated. In general, jaw plates are made of high manganese steel which is the dominant wear material. High manganese steel is also known as Hadfield manganese steel, a steel whose manganese content is very high and which possesses austenitic properties. Such plates are not only extremely tough but are also quite ductile and work-harden with use.

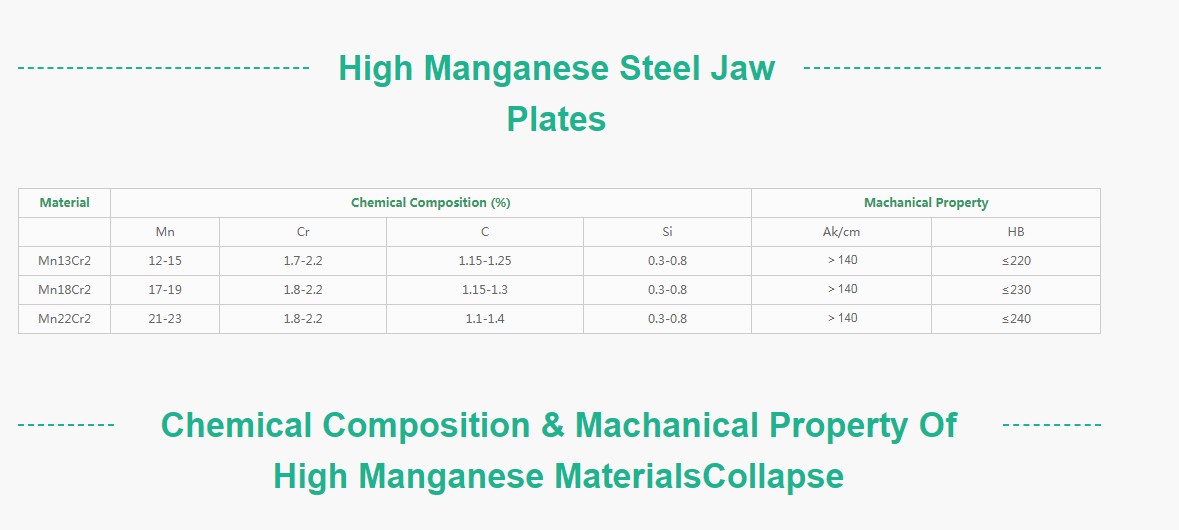

We offer jaw plates in 13%, 18% and 22% grades of manganese with chromium ranging from 2%-3%. Check below table of our high manganese jaw die properties:
