JINHUA, China – The mining and mineral processing industry lives by a simple calculus: uptime is profit, and downtime is costly. While the spotlight often falls on the powerful motors and robust pump casings in a slurry pumping system, seasoned operators know the battle against wear is won or lost in the details. At the heart of this struggle lies a component so critical, it acts as the pump’s first and most important line of defense: the volute liner.
In the harsh world of slurry transport, where abrasive slurries containing sand, ore, and mineral tailings are pushed at high velocity, components are under siege. When a pump housing fails prematurely, the knee-jerk reaction is often to replace the entire unit—an expensive and often unnecessary exercise. The smarter, more cost-effective solution is to focus on the replaceable heart of the pump: the volute liner.
But what exactly is this component, and why does it matter so much?
The Volute Liner: More Than Just a Lining

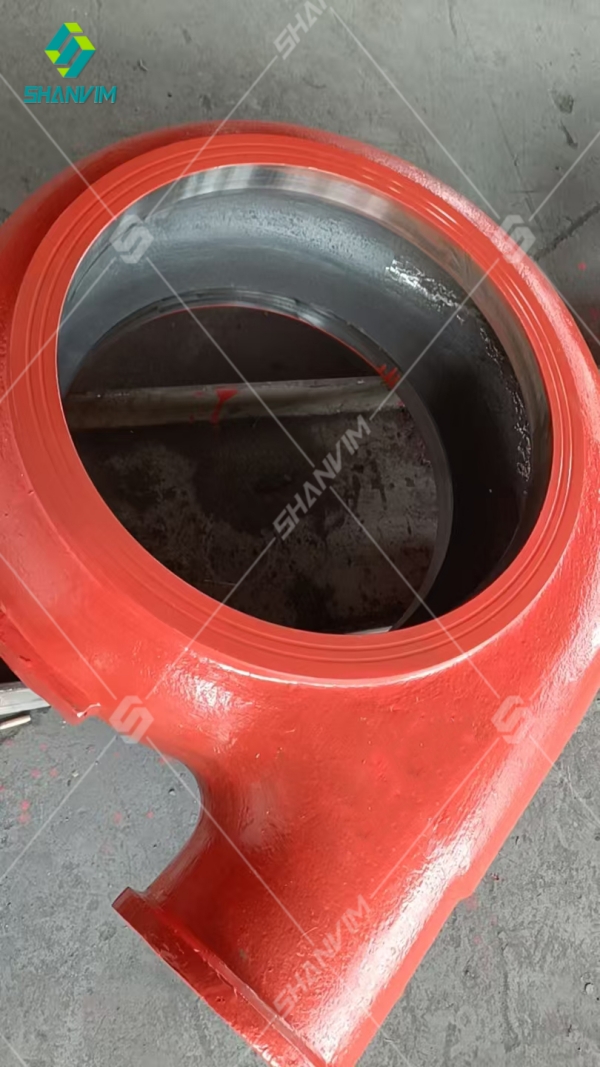

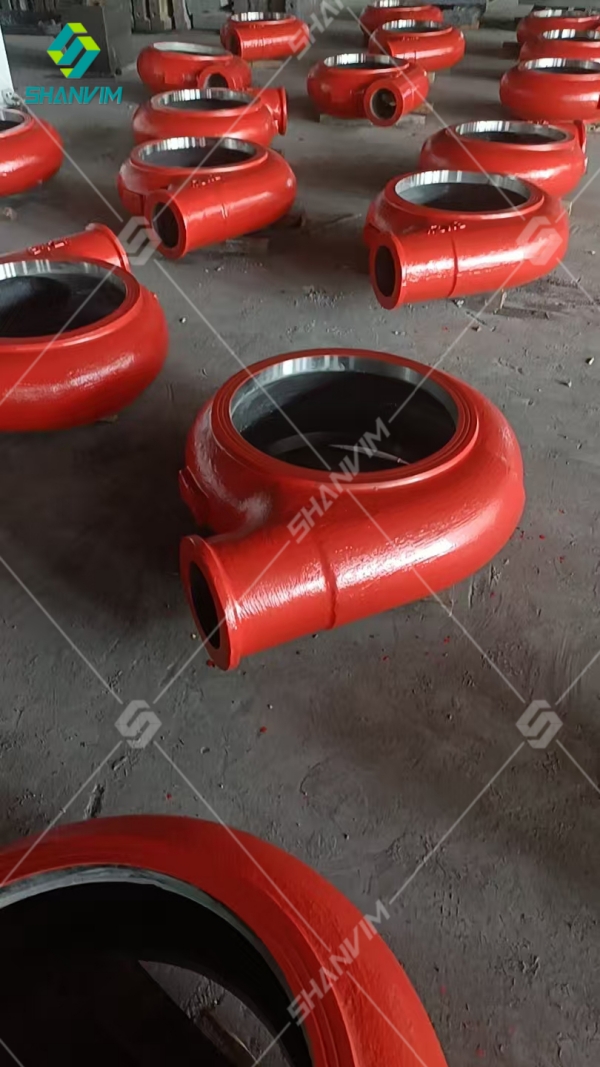

Simply put, a volute liner is the internal armor of a slurry pump. It is a precision-engineered, sacrificial component that sits inside the pump casing, enveloping the impeller. Its primary purpose is straightforward yet vital: to absorb the punishing wear caused by the high-velocity, particle-laden slurry, thereby protecting the more expensive and irreplaceable outer pump casing from erosion.
Typically, these liners are crafted from high-chromium white cast iron, renowned for its exceptional hardness and ability to withstand erosive and moderately corrosive conditions. The A05 alloy (approx. 27% Cr) is an industry benchmark, representing a “near eutectic” alloy that offers an optimal balance of hardness (HRC 58-65) and toughness, making it a preferred choice for many demanding mining applications.
A volute liner’s function extends beyond simple protection. Its internal geometry is not arbitrary; it is a carefully calculated, spiraling passage (the volute) designed to smoothly channel the slurry from the impeller to the discharge nozzle, converting velocity into pressure and minimizing turbulent flow. An optimized flow path is crucial for maintaining pump efficiency and reducing the energy loss that can lead to excessive wear.
SHANVIM: A Partnership Built on Precision and Expertise
For over 20 years, SHANVIM has been a dedicated foundry specializing in wear-resistant castings, serving the global mining and industrial sectors. We understand that a successful custom order isn’t just about casting metal; it’s about collaboration and deep technical understanding.
Our approach to manufacturing volute liners is rooted in three pillars:
Flawless Fit and Geometry: The first step in creating a reliable volute liner is ensuring it fits perfectly. We work from original drawings, samples, or detailed field measurements to reverse-engineer and custom-design liners that integrate seamlessly with your existing pump assembly. This precision ensures no costly downtime for modifications is needed, providing a 100% drop-in replacement.
Material Science for Maximum Wear Life: The choice of material is the single most important technical decision for a pump’s longevity. We offer a comprehensive range of wear-resistant alloys, including:
High-Chromium White Cast Iron (Cr26-Cr28): Our flagship material for highly abrasive slurries, delivering excellent hardness (HRC 58-65) and good corrosion resistance.
Ultrachrome A05: An industry standard that provides a great balance of hardness and toughness for a broad range of applications.
Duplex Stainless Steel: Recommended for severe corrosive environments, such as chemical slurries or seawater applications.
Manganese Steel: For high-impact applications where large rocks or debris are present.
A Collaborative, Data-Driven Approach: We don’t just manufacture parts; we engineer solutions. We ask our customers to clarify their specific operating parameters, including slurry composition, particle size, solid concentration, operating pressure, and pH level. By understanding the unique conditions of your application, we can recommend the optimal material and design to maximize your liner’s service life and minimize your total cost of ownership.
The SHANVIM Advantage
Choosing SHANVIM means choosing a partner committed to reliability and performance. We combine over two decades of foundry expertise with a modern, custom-focused approach.
Reverse-Engineering Capabilities: Whether you have a worn sample or a set of field measurements, we can replicate or improve upon your original part.
Industry Standards: Our parts are dimensionally interchangeable with Warman® and other major pump brands, guaranteeing a perfect fit with your existing fleet.
Proven Durability: We use advanced simulation and casting processes to ensure our parts are free from defects and can withstand the harshest conditions.
In the relentless fight against wear, the volute liner is your first and most critical ally. At SHANVIM, we’re dedicated to ensuring that your guardian is built to last, keeping your operations running smoothly and profitably.
