In the demanding world of mining, aggregate production, and recycling, crusher wear parts are far more than consumables—they are the critical interface between machinery and material. The performance of jaw plates, mantles, and concave/bowl liners directly determines throughput, product quality, and operational uptime. SHANVIM, a specialist in high-performance wear solutions, has built its reputation on delivering components that combine advanced metallurgy, precision engineering, and application-specific design to meet the toughest crushing challenges.

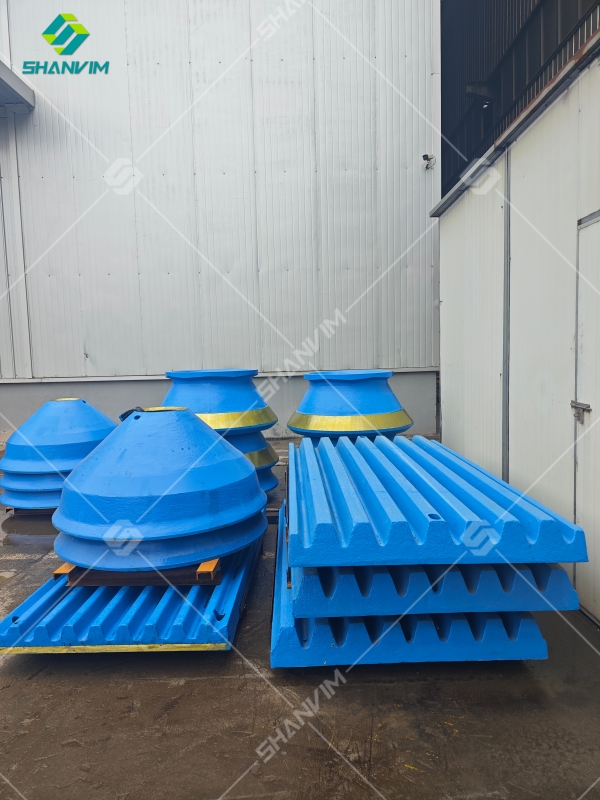

Jaw Plates: Engineered for Primary Crushing Excellence
As the primary crushing stage handles the most abrasive and oversized feed materials, jaw plates must withstand extreme impact and sliding abrasion. SHANVIM’s jaw plates are manufactured using high manganese steel (Mn14%, Mn18%, and Mn22%), selected based on the specific application requirements.
Structural Features:
SHANVIM jaw plates feature optimized tooth profiles—typically sinusoidal or corrugated patterns—that serve two essential functions. First, the alternating peaks and valleys create bending stress points within the rock, promoting fracture under compression rather than excessive grinding. Second, this profile facilitates a “rock-on-rock” effect, where fine material accumulates in the valleys, shielding the steel surface from direct abrasive contact. The result is extended wear life and consistent crushing performance.
Metallurgical Advantage:
The high manganese steel used by SHANVIM exhibits exceptional work-hardening capability. Under impact, the surface hardness increases from approximately 220 HB to over 550 HB, while the core retains its toughness and ductility. This gradient hardness allows the jaw plate to resist abrasive wear without becoming brittle. For applications involving highly abrasive materials such as granite or basalt, SHANVIM also offers bimetallic options, combining high-chromium iron wear layers with a ductile steel backing to deliver superior longevity.
Mantle and Concave/Bowl Liner: Precision Geometry for Secondary and Tertiary Crushing

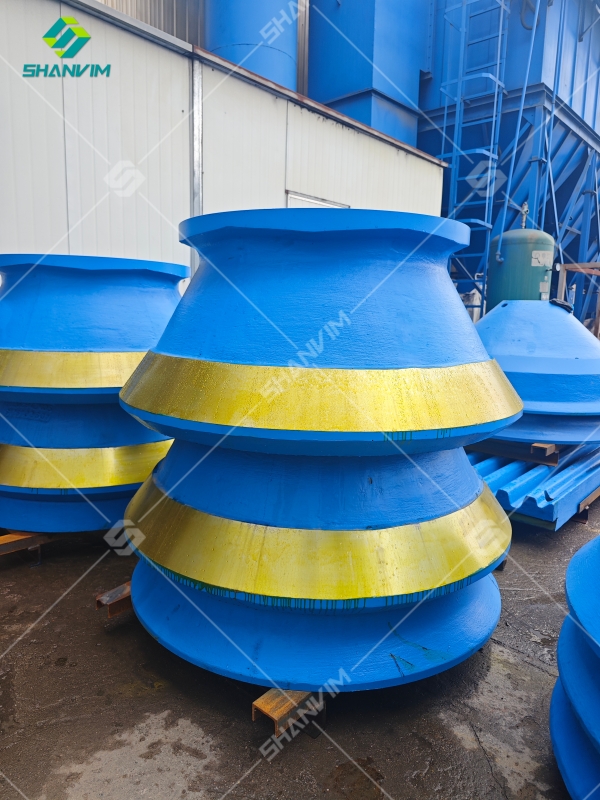

In cone crushers, the mantle (moving member) and concave or bowl liner (stationary member) function as a matched pair. The interaction between these components determines the final product shape, size consistency, and overall crushing efficiency.
Structural Geometry:
SHANVIM’s mantle and concave sets are engineered with precise chamber profiles, categorized as coarse, medium, fine, and extra-fine to match specific crushing stages. A critical design element is the parallel zone—a long, uniform section at the bottom of the chamber. This feature ensures that material is not only reduced to the target size but also consistently shaped, minimizing flaky or elongated particles.
Additionally, SHANVIM incorporates asymmetric profiles and tramp iron relief features into its concave designs. These structural innovations allow the mantle to temporarily flex when uncrushable material—such as steel debris—enters the chamber, preventing catastrophic crusher damage and reducing the risk of “sizing out” (component lock-up under load). This design consideration significantly enhances operational safety and equipment longevity.
Advanced Material Solutions:
While high manganese steel remains a reliable choice for larger cone crusher applications requiring high impact resistance, SHANVIM has increasingly adopted high-chromium iron alloys and ceramic-embedded composite technologies for fine crushing applications where abrasion is the dominant wear mechanism.
SHANVIM’s ceramic insert technology represents a significant advancement. Ceramic blocks are integrally cast into the wear liner, forming a hard, abrasion-resistant surface that protects the underlying steel matrix. In highly abrasive conditions—such as sand production or hard rock tertiary crushing—this solution can extend wear life by 100% to 300% compared to conventional manganese liners, dramatically reducing downtime and cost per ton.
Precision Fit and Operational Reliability
Beyond material composition and structural geometry, SHANVIM places exceptional emphasis on dimensional accuracy and fit. A wear part that does not seat precisely against the crusher frame can lead to uneven load distribution, premature cracking, spalling, and accelerated wear on the crusher body itself.
SHANVIM’s manufacturing process utilizes laser scanning and 3D modeling to ensure each jaw plate, mantle, and concave conforms to strict tolerances. This precision fit guarantees:
Uniform load distribution across the crushing chamber
Reduced risk of premature failure due to stress concentration
Simplified and faster field installation, minimizing downtime during liner changes
Economic Impact: Cost Per Ton Optimization
For quarry operators and mining companies, the true measure of a wear part’s value lies not in its initial purchase price but in the cost per ton of material processed. SHANVIM’s engineering approach directly addresses this metric.
A lower-quality jaw plate may carry a lower upfront cost but often requires replacement twice as frequently, leading to unplanned downtime. In a typical crushing operation, a single liner change can consume a full production shift—representing thousands of tons of lost output. By extending wear life through superior metallurgy and structural design, SHANVIM helps customers reduce the frequency of change-outs, lower labor costs, and maintain consistent production schedules.
Future-Ready Solutions
SHANVIM continues to innovate in response to evolving industry demands. The company is expanding its capabilities in site-specific customization, using feed gradation data, material abrasiveness indices, and moisture content to tailor wear part profiles for individual customer applications. Additionally, SHANVIM is exploring embedded sensor technology that will allow operators to monitor liner thickness in real time, enabling predictive maintenance and eliminating the risk of catastrophic liner failure.
Conclusion
In the high-stakes environment of mineral processing and aggregate production, crusher wear parts are strategic assets that directly influence profitability. SHANVIM’s jaw plates, mantles, and concave/bowl liners are engineered to deliver a combination of advanced metallurgy, precision geometry, and robust structural design. By prioritizing wear life, operational safety, and cost per ton performance, SHANVIM provides crushing operations with the reliability needed to meet production targets in even the most demanding conditions.
For operations seeking to maximize crusher uptime and reduce total cost of ownership, SHANVIM’s wear solutions represent a proven path to sustained efficiency.
SHANVIM as a global supplier of crusher wearing parts, we manufacture cone crusher wearing parts for different brands of crushers. We have more than 20 years of history in the field of CRUSHER WEAR PARTS. Since 2010, we have exported to America, Europe, Africa and other countries in the world.
